Description :
?Onboard Intel Core Ultra series processor;
?2 x DDR5 SO-DIMM, total maximum 96GB;
?6 x Intel i226-V (4 x i226-V for option);
?TPM2.0, 1 x M-Key, 1 x E-Key, 1 x B-Key;
?1 x HDMI2.0, 1 x DP, Type-C(USB3.0+DP)
?DC 12-19V, 90W; Size: 134x126x41mm.
|
Material |
Aluminum profile, iron gray |
|
Processor |
Onboard Intel Core 12th / 13th generation -U/-P series processor, TDP15W
Onboard Intel Core Ultra series processor |
|
|
EFI BIOS |
|
Memory |
2 x DDR5 SO-DIMM, total maximum 64 GB |
|
Storage |
1 x M.2 M-Key 2280 (PCIe 4.0 x 4) |
|
|
1 x M.2 M-Key 2280 (next to E-Key, PCIe 4.0 x 4/SATA3.0 protocol optional) Please note when placing an order |
|
|
1 x 2.5-inch SATA3.0, 2Pin 5V power supply |
|
Display |
1 x HDMI2.0, 4K@60Hz |
|
|
1 x DP, 8K@60Hz |
|
|
|
|
Board Edge I/O interface |

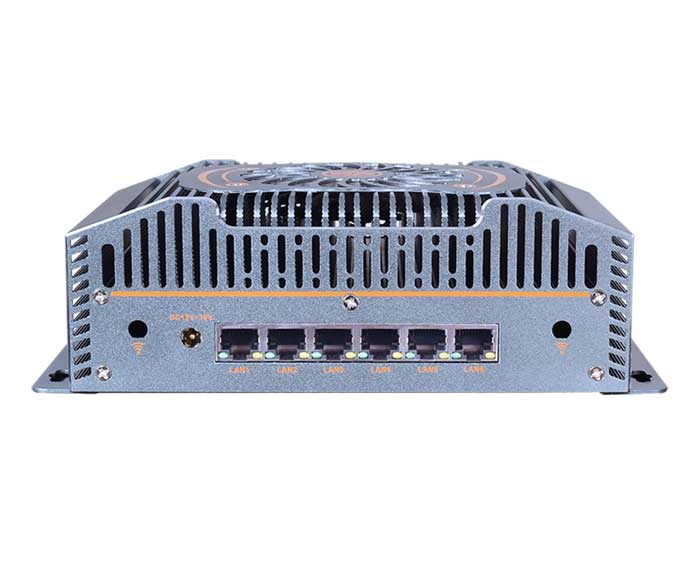

DC JACK, 6 x LAN, 1 x HDMI, 1 x DP |
|
|

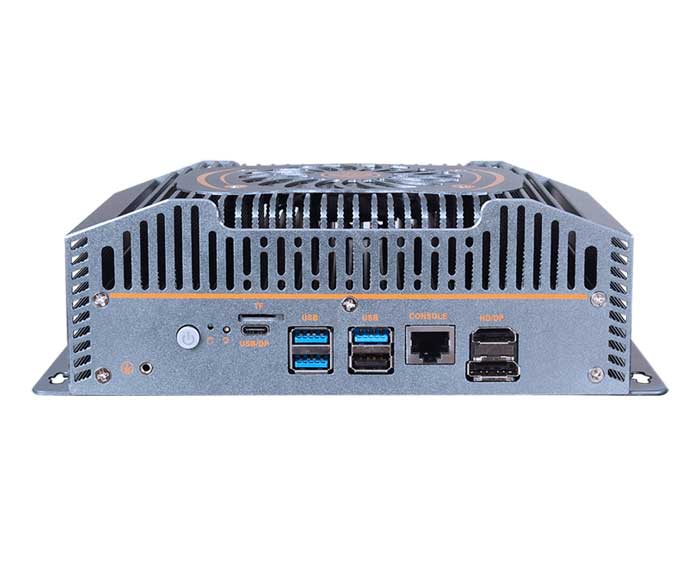

4 x USB, TF card, Type-C (USB+DP) |
|
|
Switch button, reset button, 1 x CONSOLE |
|
Extended interface/function |
External TPM2.0 optional |
|
|
1 x E-Key (PCIe+USB2.0, WIFI/BT) |
|
Power Supply |
DC 12-19V, 90W |
|
Working Environment |
Working temperature: -20℃ ~ +60℃; Working humidity: 5% ~ 90% |
|
|
Storage temperature: -40℃ ~ +85℃; Storage humidity: 5% ~ 90% |
|
Operating System |
Win10, Win11, Linux |
|
Size |
216 x 123.6 x 67.5mm |
|
Weight |
Host net weight is about 1600g, the gross weight is about 2500g. |
