◆ Skylake/Kaby lake-U serial CPU;
◆ onboard 2G\4G\8G Memory
◆ 5*RS-232，1*RS-485/RS-422;
◆ onboard 32/64/128G SSD storage chipset（optional）;
◆ DC12V Power supply（wide voltage 8-36V Power supply for optional）
◆ size: 209.4*122.5*70.6mm
Specification
|
Model
|
Q-BOX-E8
|
|
size
|
209.4*122.5*70.6mm
|
|
Processor
|
Skylake/Kaby lake-Ui3-6100/i5-6200/7200u//i7-6500u/7500u serial CPU;
|
|
Chipset
|
Skylake/Kaby lake-U single chipset
|
|
Ram socket
|
Onboard?2G\4G\8G Ram，can add one Ram socket , max support 16gb Ram
|
|
Lan
|
onboard?2*?Gigabit Ethernet（1*Intel I219 and 1*Intel I211）
|
|
Audio
|
onboard?HDA ALC662
|
|
Storage equipment
|
1*SATA3.0 1*onboard SSD ?1*Mini-SATA??2* Mini PCIE SLOT
|
|
Color
|
sliver
|
|

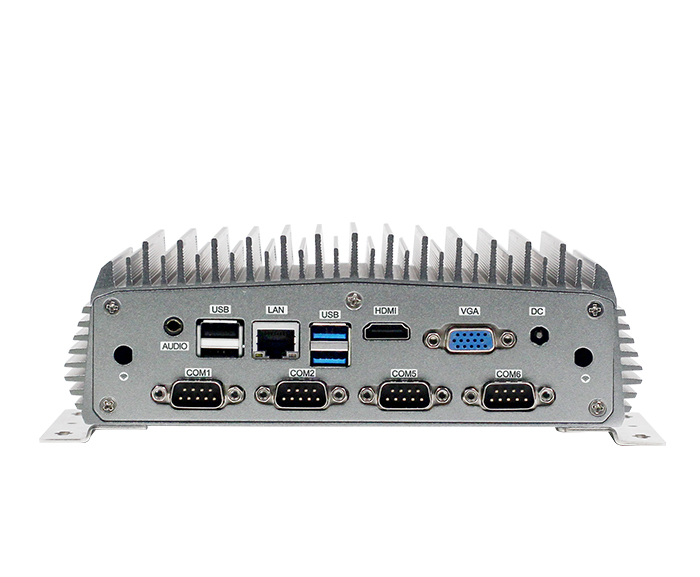

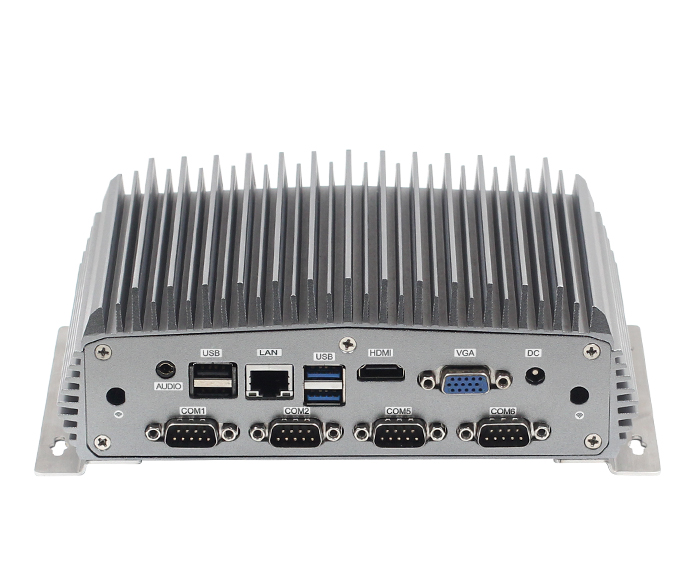

Rear panel interface
|
1*LAN ?1*HDMI ?1*VGA ?4*COM(RS232) 4*USB2.0?2*USB3.0?1*DC??1*LINE-OUT?2*WIFI?antenna interface
|
|

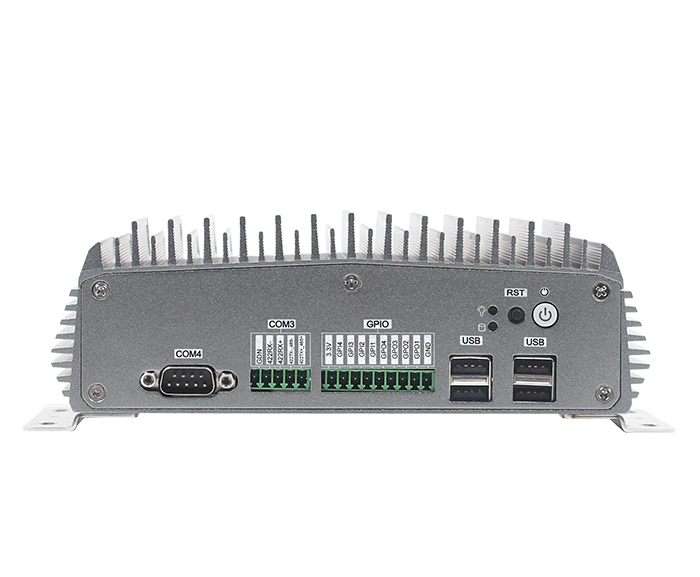

Front?panel interface
|
1* fast switch button 1* power indicator 1* hard disk indicator 4*USB2.0 1*COM (RS2320 1*COM (RS422/485 Phoenix terminal interface) 1*GPIO
|
|
Operate system
|
Skylake support Windows7 Windows10 linux ?Kaby lake ?support Windows10 Linux
|

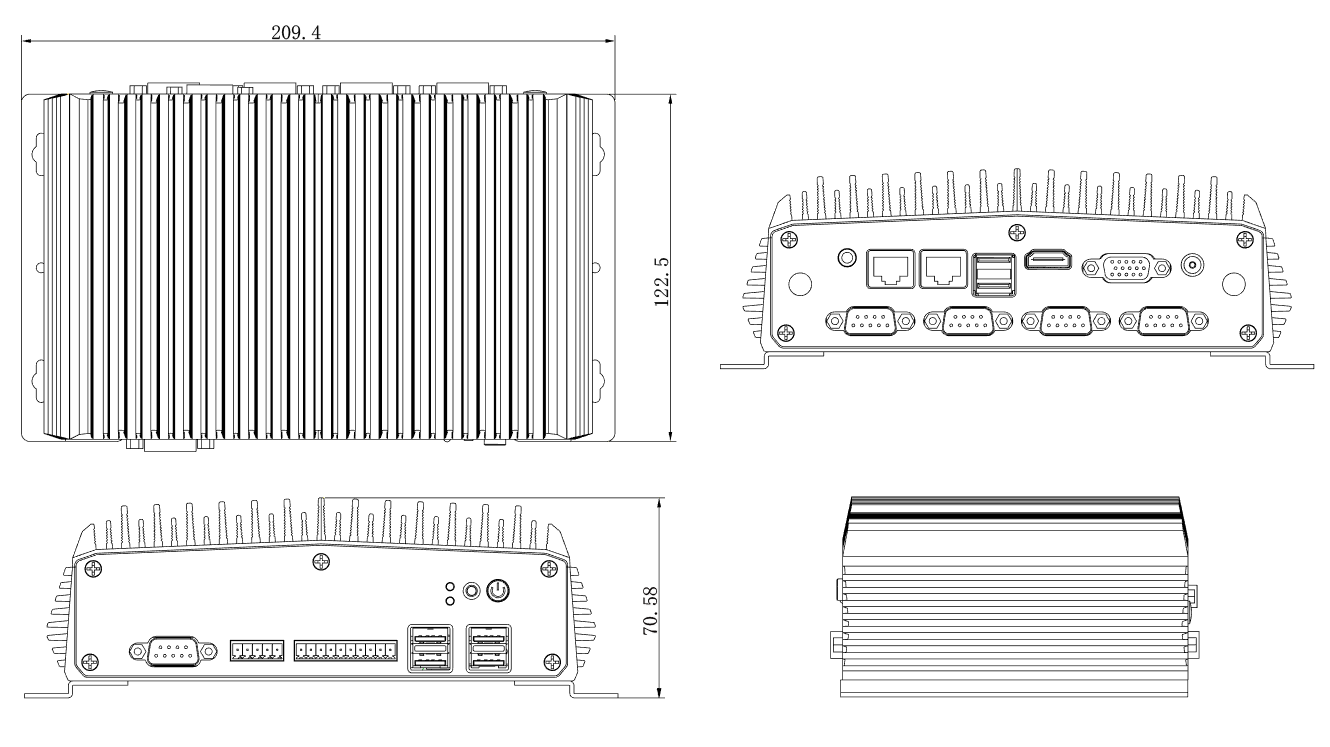

Size
order information
|
Model
|
description
|
CPU optional
|
|
?
SU110Z3A/KU250Z3A
|
Support Skylake/Kaby lake-U serial CPU
|
I3-6100U dual core ?2.3GHz
I5-6200U dual core 2.3GHz up to 2.8GHz
I7-6500U dual core 2.5GHz up to 3.1GHz
I3-7100U dual core ?2.4GHz
I5-7200U dual core 2.5GHz up to 3.1GHz
I7-7500U dual core 2.7GHz up to 3.5GHz
|
